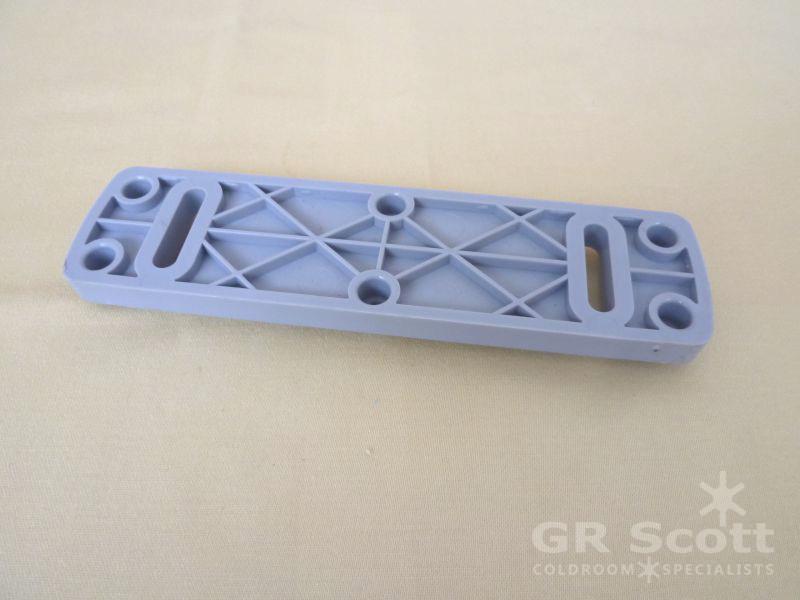

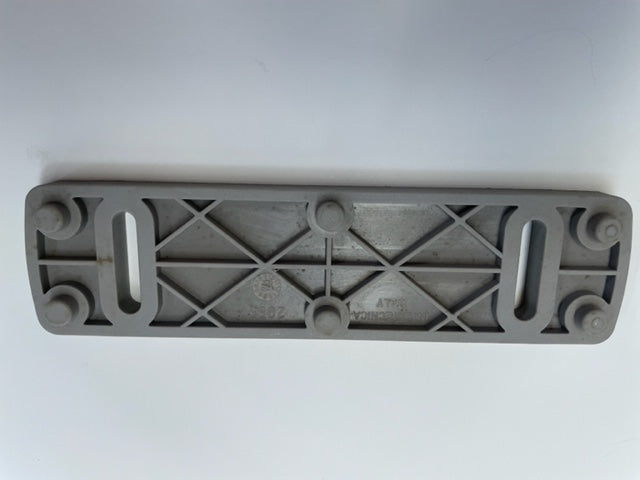

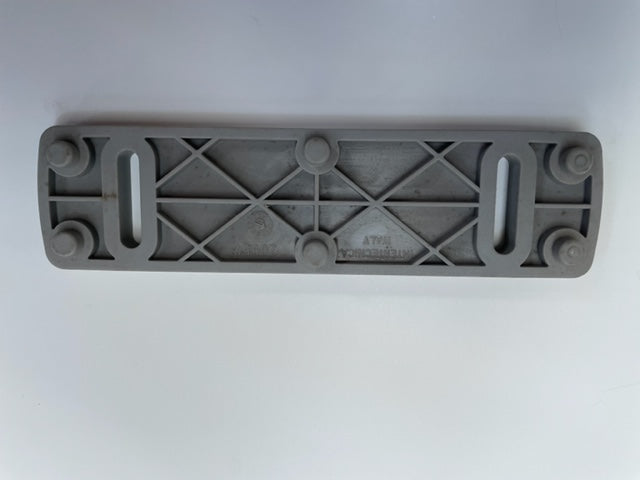

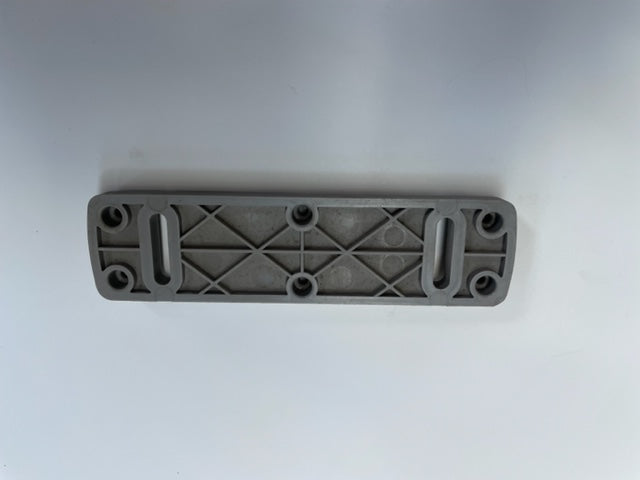

Intertecnica Shim 10mm for Hinge Series 2800

Intertecnica Shim 10mm for Hinge Series 2800 series code no. 020379

Hinges in composite material, low temperature and corrosion resistant
• Adjustable in three directions: horizontal / vertical / depth
• Theft-proof pin and tamper-proof fi xing with door closed
• Auto-lubricating hidden ramps
• Interchangeable right or left
• Modular shims
• Cover available in special colours according to quantities

Adjustment Range:
Horizontal: +/- 5mm
Vertical: + 8mm
Depth: +/- 3.5mm

Max door weight: 80 Kg
Max shim height: 20mm (2x10mm shim)
Standard colours: Body: grey RAL 7004, Covers: grey RAL 7012
